DMC DISPLAY SOLUTIONS TO BUILD YOUR NEXT BREAKTHROUGH MACHINE
ASK DMC! AS THE GLOBAL LEADER IN DISPLAY, HMI, AND EMBEDDED TECHNOLOGY, ASK US ALL OF YOUR MACHINEBUILDER QUESTIONS TO LEARN ABOUT THE OPTIMAL TECHNOLOGY, CONFIGURATION, AND OPTIONS TO BUILD YOUR BREAKTHROUGH.
-
Glass-glass structure touchscreen suitable for industrial use. Compared with film-structured touchscreens, it has higher durability against impact and ultraviolet rays.
High robustness
The flagship model of the projected capacitive touchscreen series, it features two sheets of glass laminated together without an air layer to ensure high transparency and clear visibility, and the laminated glass provides high robustness.
High UV resistance
DMC's unique UV-absorbing structure absorbs UV rays on the touchscreen, with a function that reduces UV damage to the LCD. It can be used for products that are used under intense sunlight.
High-temperature resistance
Guaranteed to operate in environments ranging from -40°C to +80°C, providing high-temperature resistance. It can be used in products deployed worldwide, from the intense low-temperature environments of southern countries to the extreme low-temperature environments of northern countries.
High operability and noise resistance
Fine tuning with DMC's unique touchscreen controller allows for water detection, glove operation, and pen use, while noise filtering capabilities enhance the ability to handle high-noise environments.
Safe for low brightness displays
Pattern visibility suppression is a standard feature. Even with a low-luminance display, pattern visibility is reduced and the screen is clean and easy to read.
FIRMWARE CUSTOMIZATION
Customize to fit your environment by adjusting firmware
As developing the original controller, DMC can freely customize the controller FW according to the customer's request and usage environment. For example, increasing noise filters for noisy environments, increasing the number of touch points for operation by multiple people, adjusting the sensitivity for operation with a gloved hand, palm rejection for operation with a stylus pen, and water detection to prevent malfunction caused by water on the panel. DMC can offer various FW customization.
Touch operation over a thick acrylic panel and the air gap layer
DUSx200 controller can be adjusted in its sensitivity so that operation with an acrylic cover(Max:3mm) & air gap layer(Max:1mm) is possible. If an air gap layer is made between the touchscreen and acrylic so that the acrylic panel can be removable, replacement and maintenance will be easy.
CLICK HERE TO SEE ALL DMC CAPACITIVE TOUCHSCREEN PRODUCTS
-
Resistive touchscreens use a two-layer structure with a soft touch surface. Two conductive layers contact when pressure is exerted on them. Why Choose Resistive? - High noise (electrical, vibration) environments - Error prevention in harsh environments - Glove input required - Predominant single touch inputs - Multi-touch available.
Light-touch resistive sensor + Gesture detective controller
LST series is a light-touch Model developed with DMC's original technology. With a light and smooth feeling of finger and intuitive operation by gesture detection, it is possible to realize an interface operation like a smartphone.
Easy to embedd at low cost
Resistive touch screens have good cost performance. Since gesture operation can be used with simple installation, it is possible to introduce both safety and operability, which have been issues so far, and at a low cost.
High environmental performance
Due to its structure, the resistive type method works even in a noisy environment, water and gloves use, and other various situations.
Recommended for the following scenarios:
Want to use gesture operation
Want to scroll the screen with a light touch
Taking too long for one operation
Want to operate manuals or drawings in an intuitive manner instead of pushing buttons.
Want to introduce gesture operation at a lower price.
Concerned about PCAP touch screen due to installation and cost.
CLICK HERE TO SEE THE DMC RESISTIVE PRODUCTS
-
DMC HG HMI Infrared gesture sensor enables device control without direct touch. It’s the perfect solution for industrial or medical settings where there can’t be contamination of the device or the hands. It’s yet another innovative display solution from DMC to help machine builders create amazing new applications.
SMALL FORM FACTOR THAT’S EASY TO DEPLOY
Just connect the DMC HG by USB-C cable to a wide range of displays. The HG can be permanently mounted or flexibly placed.
READY FOR HARSH ENVIRONMENTS
THE DMC HG is resistant to water, moisture, sand, dust, and other particles, making it safe to use in outdoor installations, factories, and other dirty locations. This durability is tested and proven to function without fail in heavy rain and dust storms.
SUPPORT FOR MULTI-DIRECTIONAL SCROLLING
DMC HG is ready for gestures that guide Up-and-Down, Left-and-Right scrolling as well as Enter/OK button submission.
CLICK HERE TO SEE DMC TOUCHLESS PRODUCTS.
-
Engineered for flexibility, this touchscreen LCD module offers a broad range of configuration and customization options, enabling precise alignment with application requirements across industrial and embedded environments.
A modular design approach combined with standardized services and application compatibility reduces integration complexity, accelerates deployment timelines, and improves overall cost efficiency.
CLICK HERE TO SEE DMC TOUCHSCREEN MODULE PRODUCTS
-
Flexible Mounting with Industrial-Grade Protection
Designed for versatile deployment, the unit supports standard panel mounting, VESA-compatible free mounting, and an optional stand for standalone installations. This flexibility enables seamless integration across diverse equipment configurations and system architectures.
Rated IP65, the enclosure provides reliable protection against dust ingress and water exposure, ensuring dependable performance in demanding industrial environments.
CLICK HERE TO SEE DMC TOUCHSCREEN MONITOR PRODUCTS
-
A panel computer is an integrated embedded PC that combines a touchscreen LCD display and a computer. It is an ideal choice for a wide range of industrial applications, such as control panels, operation terminals, and monitoring terminals, as it is energy-efficient, compact, and supports multi-touch operation.
CLICK HERE TO SEE DMC HMI TOUCHSCREEN PC PRODUCTS -
A next-generation mobile terminal series designed to deliver advanced performance, reliability, and operational confidence across diverse manufacturing settings.
Engineered for true mobility, the compact and lightweight form factor allows operators to carry and deploy the system wherever it is needed, enabling real-time access, data visibility, and workflow continuity regardless of location.
CLICK HERE TO SEE DMC TEACHING PENDANT PRODUCTS
FINTOUCH
The Fin Touch Series achieves exceptional thinness and weight reduction through a film/film sensor structure combined with a Chip-on-Flexible (COF) integrated controller.
Designed for lightweight, space-constrained devices, it is ideally suited for tablets, handheld terminals, and next-generation portable equipment.
DUS-LA SERIES – CAPACITIVE TOUCHSCREEN
The DUS-LA Series is a high-transmittance projected capacitive touchscreen built on a proven glass/glass architecture. Designed for durability and optical clarity, it delivers premium image quality and reliable performance in demanding outdoor and industrial environments.
Available in multiple wide-format and standard sizes, the DUS-LA Series combines refined design with long-term environmental stability.
DUS-S SERIES – CAPACITIVE TOUCHSCREEN
The DUS-N Series is a projected capacitive touchscreen engineered with a narrow-bezel architecture that maximizes screen-to-body ratio. By minimizing internal wiring space and reducing frame width, the design enables:
• Larger display areas without increasing overall device size
• Device miniaturization while maintaining screen dimensions
• Compact integration into slim, next-generation products
Ideal for embedded systems, industrial equipment, kiosks, and modern HMI applications where space efficiency and clean design are critical.
DUS-N SERIES – CAPACITIVE TOUCHSCREEN
The DUS-N Series is a projected capacitive touchscreen engineered with a narrow-bezel architecture that maximizes screen-to-body ratio. By minimizing internal wiring space and reducing frame width, the design enables:
• Larger display areas without increasing overall device size
• Device miniaturization while maintaining screen dimensions
• Compact integration into slim, next-generation products
Ideal for embedded systems, industrial equipment, kiosks, and modern HMI applications where space efficiency and clean design are critical.

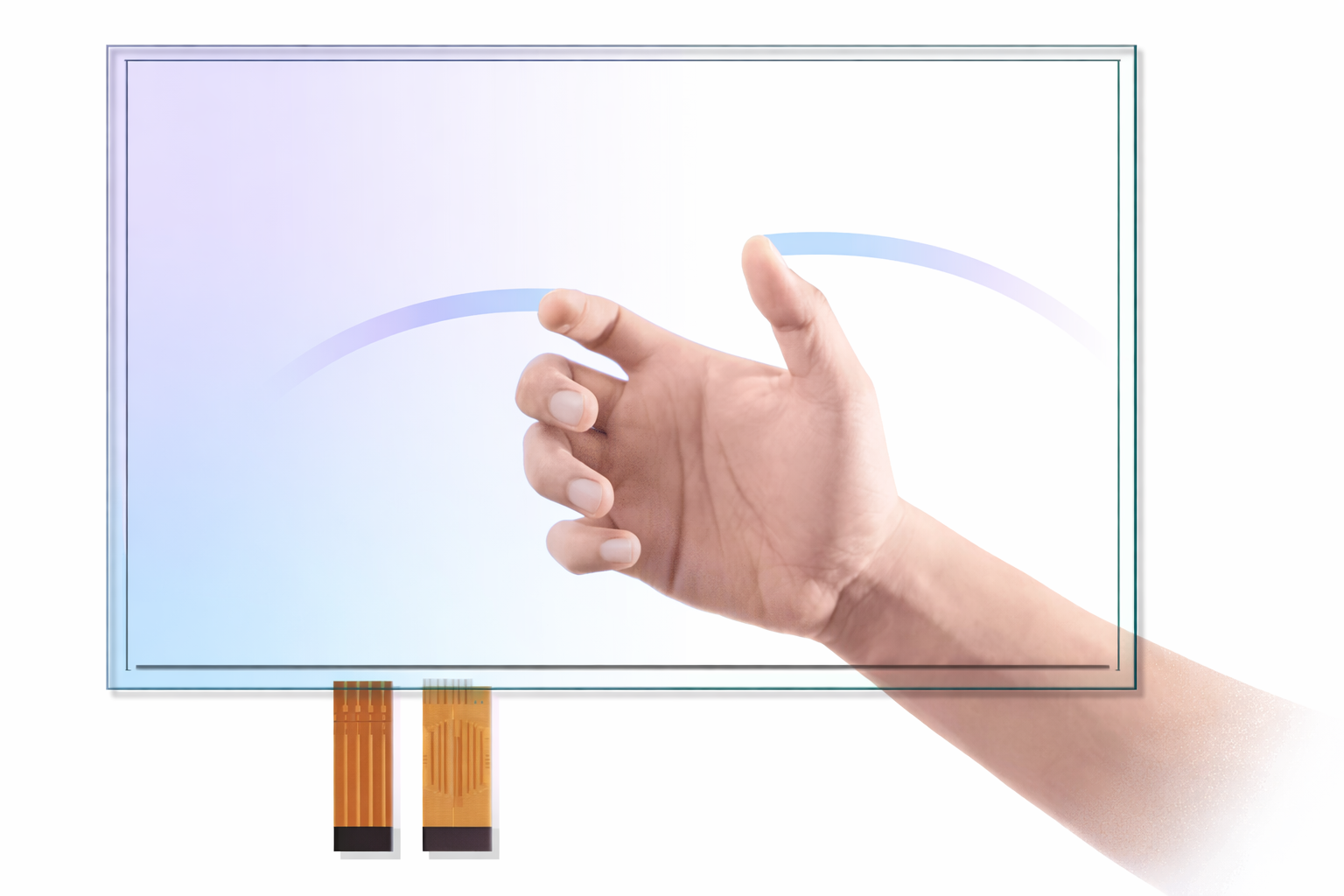

DUS-A SERIES – CAPACITIVE TOUCHSCREEN
Projected capacitive touchscreens with advanced multi-touch gesture support deliver smooth, intuitive user interaction. Built with a robust dual-layer glass construction, they offer exceptional resistance to impact, ultraviolet exposure, and environmental stress. This durable architecture ensures long-term reliability in outdoor installations and demanding industrial environments.

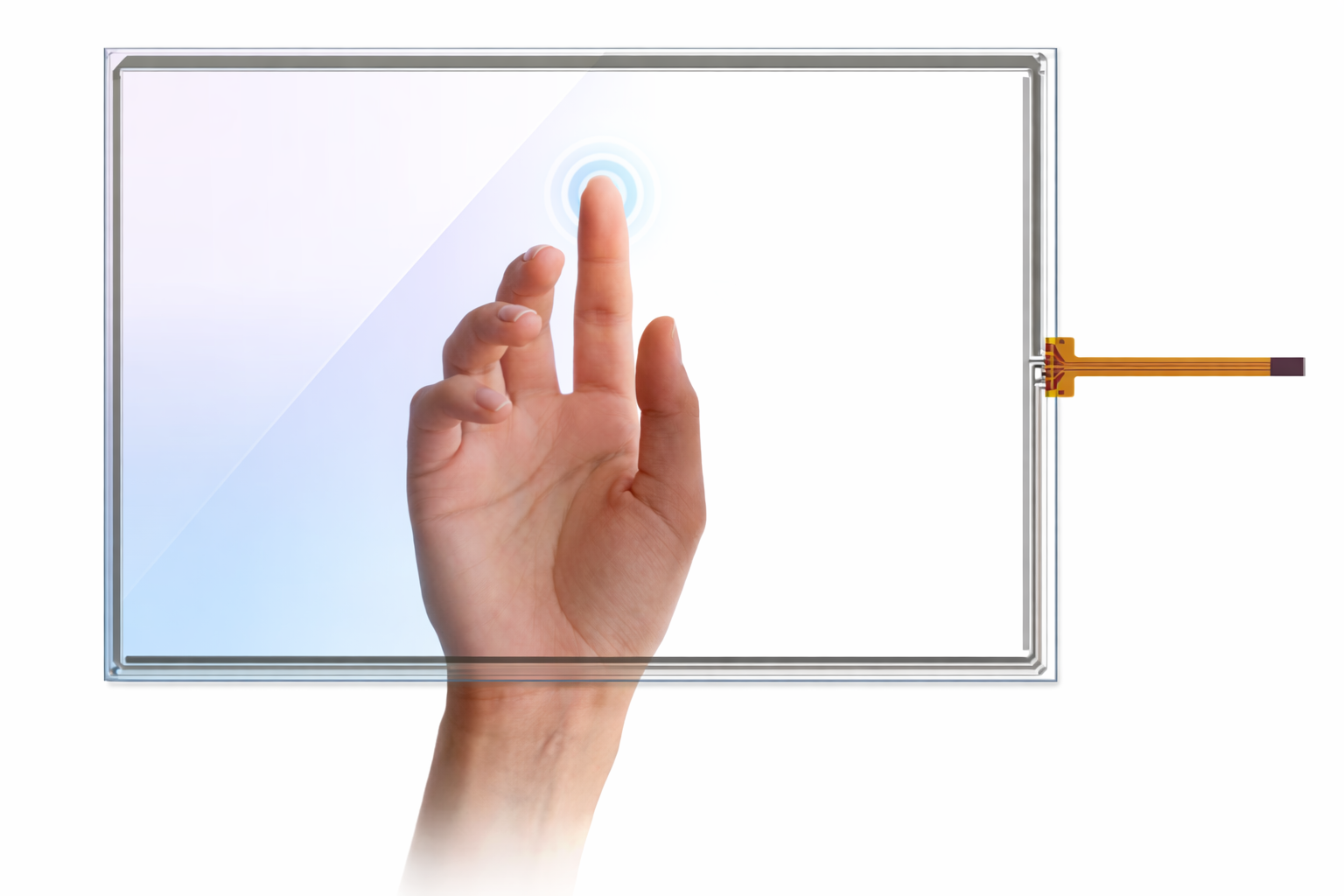

G-SURFACE – RESISTIVE TOUCHSCREEN
High optical clarity and superior durability achieved through specialized ultra-thin glass construction. Designed for excellent visibility even under intense ambient light. Resistant to UV exposure and chemical contact, ensuring long-term reliability in demanding environments. Maintains precise pressure-sensitive operation, allowing seamless use with gloves. An advanced touch panel solution engineered for outdoor equipment and high-precision instrumentation.

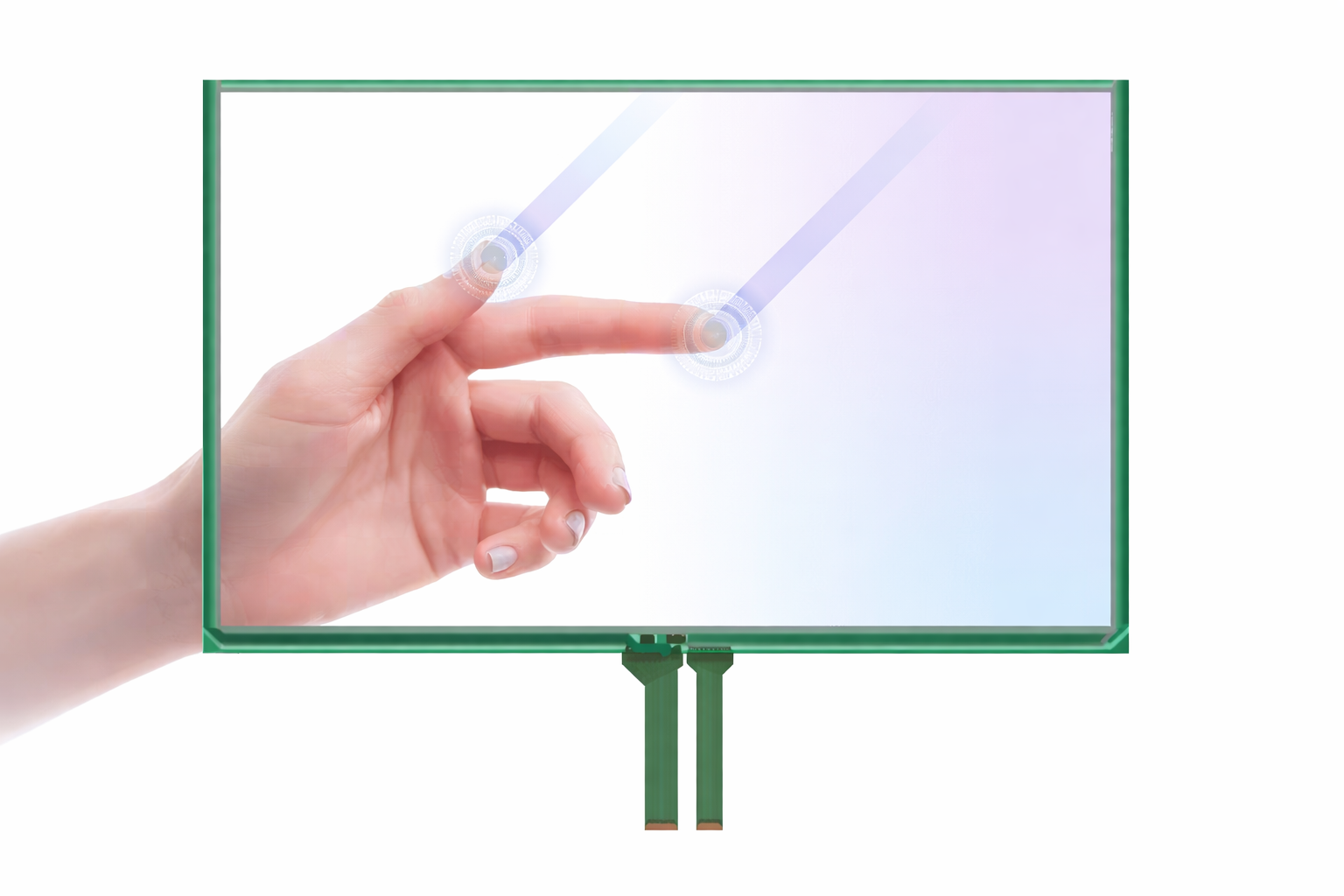

MTR-G SERIES – RESISTIVE TOUCHSCREEN
This resistive touchscreen supports multi-touch gestures comparable to smartphone interfaces, combining familiar usability with industrial reliability. The low actuation force enables smooth, light-touch operation, while pressure-based input detection ensures stable performance without sensitivity to electrical noise.

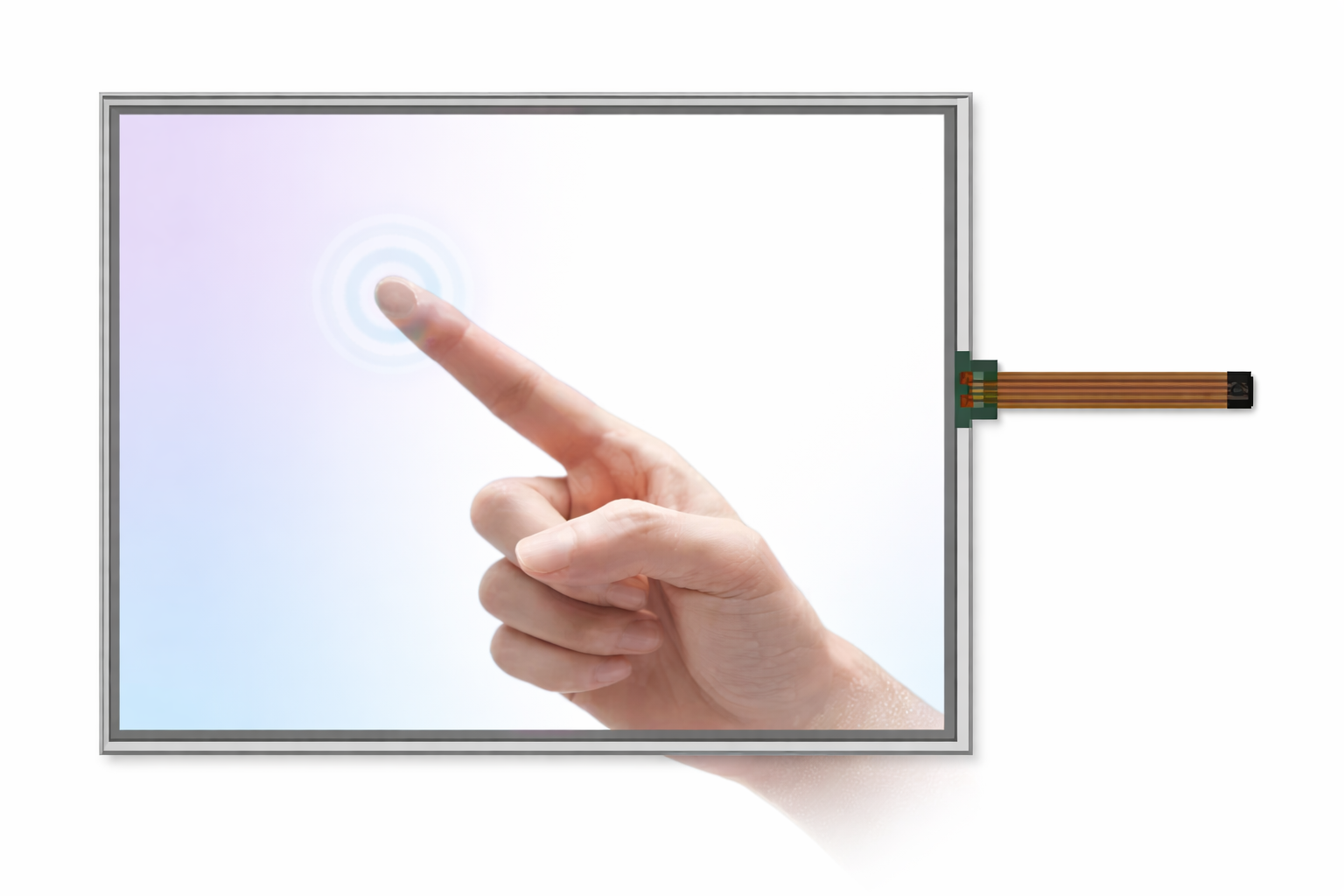

FST SERIES – RESISTIVE TOUCHSCREEN
This high-durability model features a 5-wire resistive touchscreen engineered for long-term reliability and simplified maintenance. It delivers stable, consistent performance at a cost-effective price point, supporting strong overall economic efficiency.
Because input is pressure-based, operation is immune to electrical noise and unaffected by environmental interference. The panel supports activation with a finger, gloved hand, or stylus, making it ideal for industrial and field applications.
QST SERIES – RESISTIVE TOUCHSCREEN
The LST Series touch panels are available in sizes from 4.3 inch to 21.5 inch wide, featuring an 80mm tail length and 1mm pin pitch configuration. Designed for industrial reliability and integration flexibility, each model includes detailed mechanical dimensions, controller compatibility, and 2D and 3D drawing support to streamline engineering and product development.
LST SERIES – RESISTIVE TOUCHSCREEN
The LST Series touch panels are available in sizes from 4.3 inch to 21.5 inch wide, featuring an 80mm tail length and 1mm pin pitch configuration. Designed for industrial reliability and integration flexibility, each model includes detailed mechanical dimensions, controller compatibility, and 2D and 3D drawing support to streamline engineering and product development.
