DMC DISPLAY SOLUTIONS TO BUILD YOUR NEXT BREAKTHROUGH MACHINE
ASK DMC! AS THE GLOBAL LEADER IN DISPLAY, HMI, AND EMBEDDED TECHNOLOGY, ASK US ALL OF YOUR MACHINEBUILDER QUESTIONS TO LEARN ABOUT THE OPTIMAL TECHNOLOGY, CONFIGURATION, AND OPTIONS TO BUILD YOUR BREAKTHROUGH.
-
Glass-glass structure touchscreen suitable for industrial use. Compared with film-structured touchscreens, it has higher durability against impact and ultraviolet rays.
High robustness
The flagship model of the projected capacitive touchscreen series, it features two sheets of glass laminated together without an air layer to ensure high transparency and clear visibility, and the laminated glass provides high robustness.
High UV resistance
DMC's unique UV-absorbing structure absorbs UV rays on the touchscreen, with a function that reduces UV damage to the LCD. It can be used for products that are used under intense sunlight.
High-temperature resistance
Guaranteed to operate in environments ranging from -40°C to +80°C, providing high-temperature resistance. It can be used in products deployed worldwide, from the intense low-temperature environments of southern countries to the extreme low-temperature environments of northern countries.
High operability and noise resistance
Fine tuning with DMC's unique touchscreen controller allows for water detection, glove operation, and pen use, while noise filtering capabilities enhance the ability to handle high-noise environments.
Safe for low brightness displays
Pattern visibility suppression is a standard feature. Even with a low-luminance display, pattern visibility is reduced and the screen is clean and easy to read.
FIRMWARE CUSTOMIZATION
Customize to fit your environment by adjusting firmware
As developing the original controller, DMC can freely customize the controller FW according to the customer's request and usage environment. For example, increasing noise filters for noisy environments, increasing the number of touch points for operation by multiple people, adjusting the sensitivity for operation with a gloved hand, palm rejection for operation with a stylus pen, and water detection to prevent malfunction caused by water on the panel. DMC can offer various FW customization.
Touch operation over a thick acrylic panel and the air gap layer
DUSx200 controller can be adjusted in its sensitivity so that operation with an acrylic cover(Max:3mm) & air gap layer(Max:1mm) is possible. If an air gap layer is made between the touchscreen and acrylic so that the acrylic panel can be removable, replacement and maintenance will be easy.
CLICK HERE TO SEE ALL DMC CAPACITIVE TOUCHSCREEN PRODUCTS
-
Resistive touchscreens use a two-layer structure with a soft touch surface. Two conductive layers contact when pressure is exerted on them. Why Choose Resistive? - High noise (electrical, vibration) environments - Error prevention in harsh environments - Glove input required - Predominant single touch inputs - Multi-touch available.
Light-touch resistive sensor + Gesture detective controller
LST series is a light-touch Model developed with DMC's original technology. With a light and smooth feeling of finger and intuitive operation by gesture detection, it is possible to realize an interface operation like a smartphone.
Easy to embedd at low cost
Resistive touch screens have good cost performance. Since gesture operation can be used with simple installation, it is possible to introduce both safety and operability, which have been issues so far, and at a low cost.
High environmental performance
Due to its structure, the resistive type method works even in a noisy environment, water and gloves use, and other various situations.
Recommended for the following scenarios:
Want to use gesture operation
Want to scroll the screen with a light touch
Taking too long for one operation
Want to operate manuals or drawings in an intuitive manner instead of pushing buttons.
Want to introduce gesture operation at a lower price.
Concerned about PCAP touch screen due to installation and cost.
CLICK HERE TO SEE THE DMC RESISTIVE PRODUCTS
-
DMC HG HMI Infrared gesture sensor enables device control without direct touch. It’s the perfect solution for industrial or medical settings where there can’t be contamination of the device or the hands. It’s yet another innovative display solution from DMC to help machine builders create amazing new applications.
SMALL FORM FACTOR THAT’S EASY TO DEPLOY
Just connect the DMC HG by USB-C cable to a wide range of displays. The HG can be permanently mounted or flexibly placed.
READY FOR HARSH ENVIRONMENTS
THE DMC HG is resistant to water, moisture, sand, dust, and other particles, making it safe to use in outdoor installations, factories, and other dirty locations. This durability is tested and proven to function without fail in heavy rain and dust storms.
SUPPORT FOR MULTI-DIRECTIONAL SCROLLING
DMC HG is ready for gestures that guide Up-and-Down, Left-and-Right scrolling as well as Enter/OK button submission.
CLICK HERE TO SEE DMC TOUCHLESS PRODUCTS.
-
Engineered for flexibility, this touchscreen LCD module offers a broad range of configuration and customization options, enabling precise alignment with application requirements across industrial and embedded environments.
A modular design approach combined with standardized services and application compatibility reduces integration complexity, accelerates deployment timelines, and improves overall cost efficiency.
CLICK HERE TO SEE DMC TOUCHSCREEN MODULE PRODUCTS
-
Flexible Mounting with Industrial-Grade Protection
Designed for versatile deployment, the unit supports standard panel mounting, VESA-compatible free mounting, and an optional stand for standalone installations. This flexibility enables seamless integration across diverse equipment configurations and system architectures.
Rated IP65, the enclosure provides reliable protection against dust ingress and water exposure, ensuring dependable performance in demanding industrial environments.
CLICK HERE TO SEE DMC TOUCHSCREEN MONITOR PRODUCTS
-
A panel computer is an integrated embedded PC that combines a touchscreen LCD display and a computer. It is an ideal choice for a wide range of industrial applications, such as control panels, operation terminals, and monitoring terminals, as it is energy-efficient, compact, and supports multi-touch operation.
CLICK HERE TO SEE DMC HMI TOUCHSCREEN PC PRODUCTS -
A next-generation mobile terminal series designed to deliver advanced performance, reliability, and operational confidence across diverse manufacturing settings.
Engineered for true mobility, the compact and lightweight form factor allows operators to carry and deploy the system wherever it is needed, enabling real-time access, data visibility, and workflow continuity regardless of location.
CLICK HERE TO SEE DMC TEACHING PENDANT PRODUCTS
DUS-A Capacitive Touch Screen 15.0"
The DMC Touchless Series enables intuitive device operation without physical contact by detecting hand movement and gesture direction in front of the display. By integrating an infrared gesture sensing system, equipment can be controlled safely and reliably even when touching a screen is impractical or undesirable.
Touchless interaction improves hygiene, reduces mechanical wear, and enables operation in environments where gloves, contaminants, moisture, or strict cleanliness requirements limit traditional touchscreen usability.
When combined with DMC’s proprietary control technology, gesture sensitivity and detection behavior can be tuned to match specific operating environments, ensuring stable performance across industrial, medical, and public-use applications.
DUS-A Capacitive Touch Screen Overlay 12.1"
The DMC Touchless Series enables intuitive device operation without physical contact by detecting hand movement and gesture direction in front of the display. By integrating an infrared gesture sensing system, equipment can be controlled safely and reliably even when touching a screen is impractical or undesirable.
Touchless interaction improves hygiene, reduces mechanical wear, and enables operation in environments where gloves, contaminants, moisture, or strict cleanliness requirements limit traditional touchscreen usability.
When combined with DMC’s proprietary control technology, gesture sensitivity and detection behavior can be tuned to match specific operating environments, ensuring stable performance across industrial, medical, and public-use applications.
DUS-A Capacitive Touch Screen 10.4"
The DMC Touchless Series enables intuitive device operation without physical contact by detecting hand movement and gesture direction in front of the display. By integrating an infrared gesture sensing system, equipment can be controlled safely and reliably even when touching a screen is impractical or undesirable.
Touchless interaction improves hygiene, reduces mechanical wear, and enables operation in environments where gloves, contaminants, moisture, or strict cleanliness requirements limit traditional touchscreen usability.
When combined with DMC’s proprietary control technology, gesture sensitivity and detection behavior can be tuned to match specific operating environments, ensuring stable performance across industrial, medical, and public-use applications.
DUS-A Capacitive Touch Screen 10.1"
The DMC Touchless Series enables intuitive device operation without physical contact by detecting hand movement and gesture direction in front of the display. By integrating an infrared gesture sensing system, equipment can be controlled safely and reliably even when touching a screen is impractical or undesirable.
Touchless interaction improves hygiene, reduces mechanical wear, and enables operation in environments where gloves, contaminants, moisture, or strict cleanliness requirements limit traditional touchscreen usability.
When combined with DMC’s proprietary control technology, gesture sensitivity and detection behavior can be tuned to match specific operating environments, ensuring stable performance across industrial, medical, and public-use applications.
DUS-A Capacitive Touch Screen 8.4"
The DMC Touchless Series enables intuitive device operation without physical contact by detecting hand movement and gesture direction in front of the display. By integrating an infrared gesture sensing system, equipment can be controlled safely and reliably even when touching a screen is impractical or undesirable.
Touchless interaction improves hygiene, reduces mechanical wear, and enables operation in environments where gloves, contaminants, moisture, or strict cleanliness requirements limit traditional touchscreen usability.
When combined with DMC’s proprietary control technology, gesture sensitivity and detection behavior can be tuned to match specific operating environments, ensuring stable performance across industrial, medical, and public-use applications.

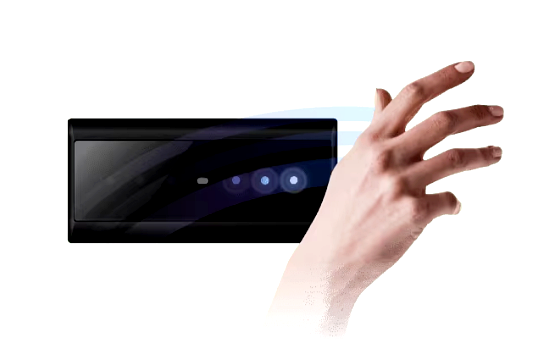

GESTURE HMI SERIES– TOUCHLESS
The DMC Touchless Series enables intuitive device operation without physical contact by detecting hand movement and gesture direction in front of the display. By integrating an infrared gesture sensing system, equipment can be controlled safely and reliably even when touching a screen is impractical or undesirable.
Touchless interaction improves hygiene, reduces mechanical wear, and enables operation in environments where gloves, contaminants, moisture, or strict cleanliness requirements limit traditional touchscreen usability.
When combined with DMC’s proprietary control technology, gesture sensitivity and detection behavior can be tuned to match specific operating environments, ensuring stable performance across industrial, medical, and public-use applications.

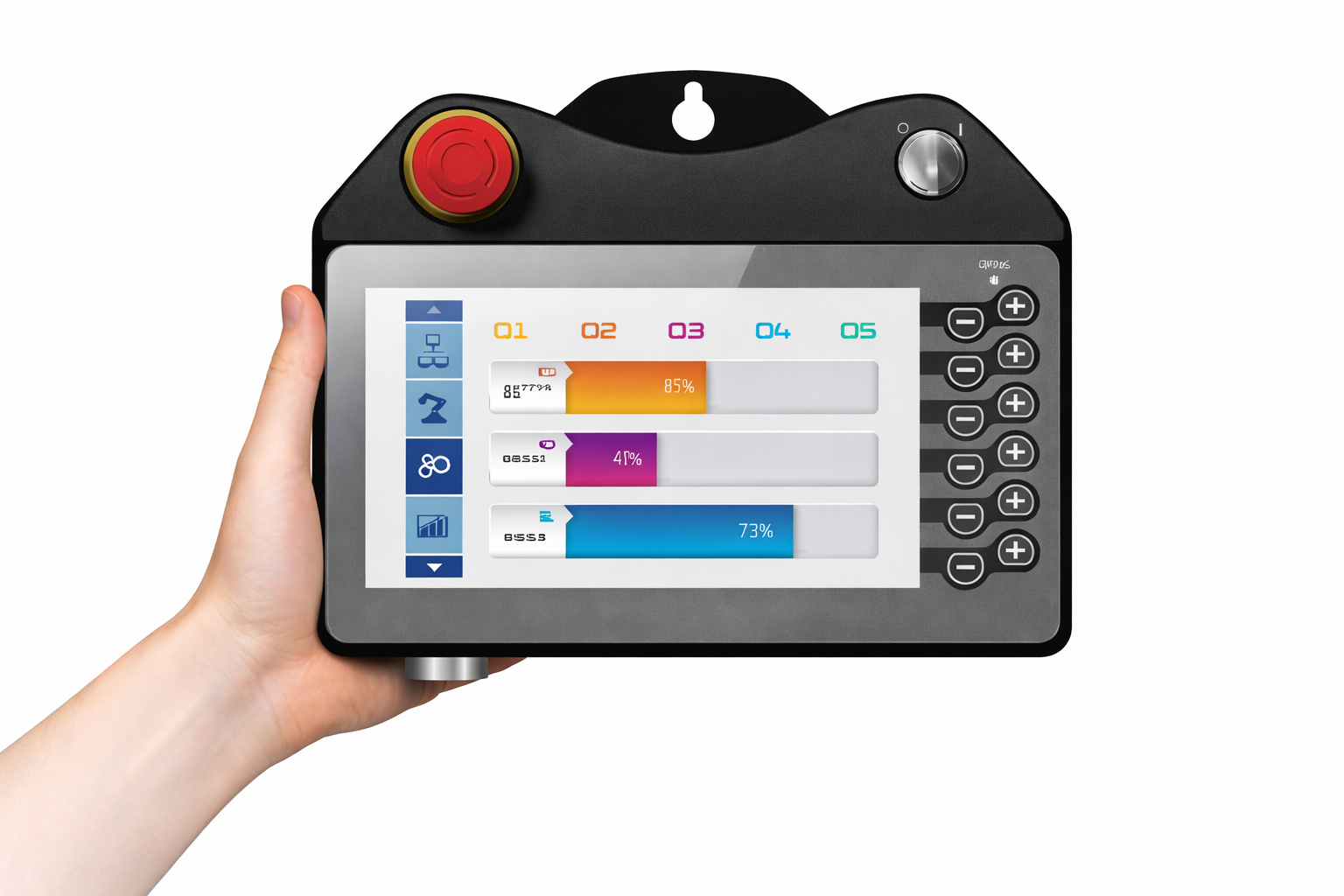

EMP SERIES
The EMP Series is a rugged industrial teaching pendant designed for machine programming, operation instruction, and system integration.
Built on Embedded Linux, it delivers long-term reliability, flexible development, and stable performance in demanding factory environments.
As a machine-side controller, the pendant enables intuitive touchscreen-based operation of connected devices and systems.

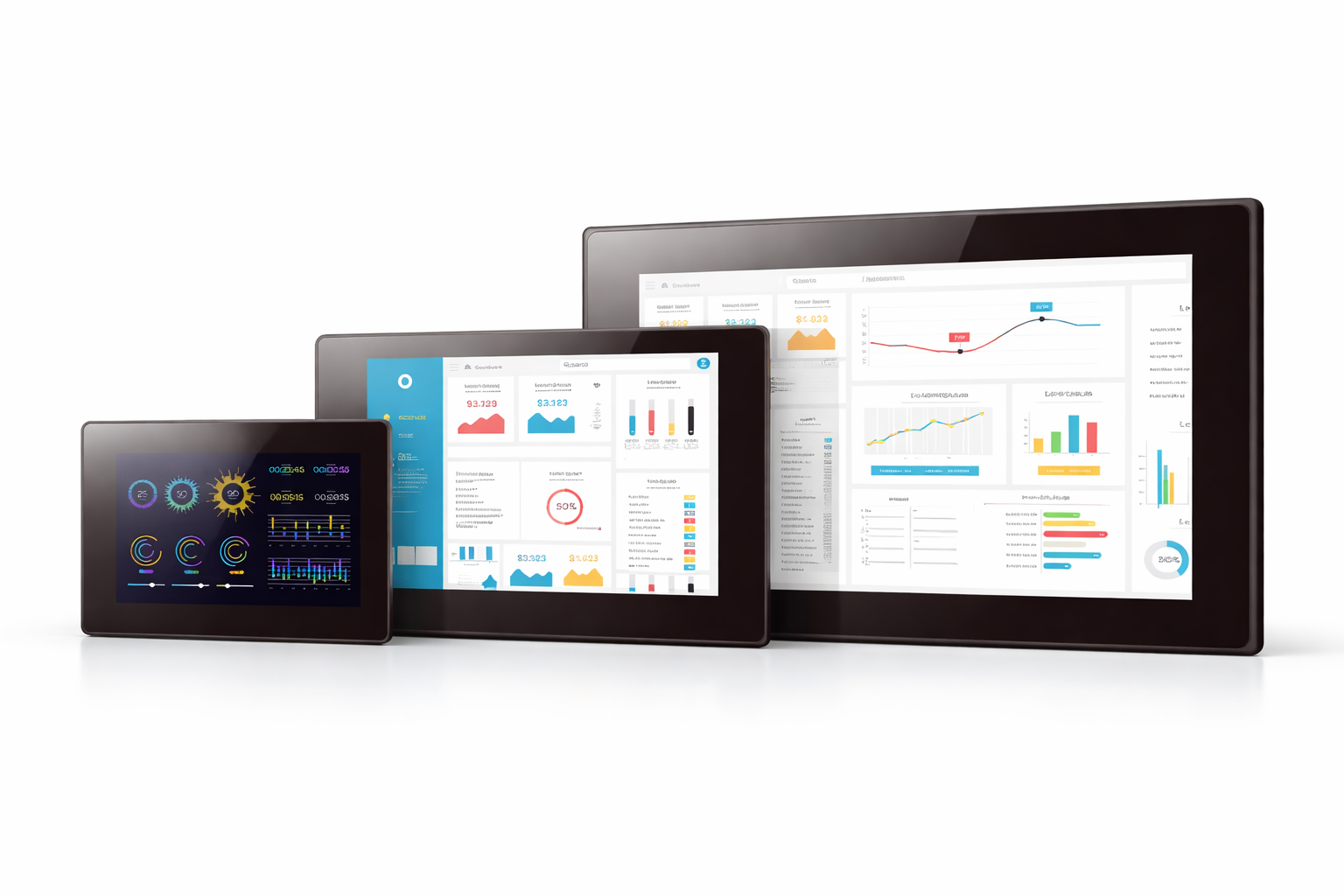

EMG7 SERIES
Reliable hardware and embedded Linux OS for long-term stable operation.
Available Sizes:
7.0” Wide
12.1”
The EMG7 Series is an industrial-grade bezel-type panel computer designed for durability and continuous operation. Featuring a full-flat front surface, multi-touch PCAP operation, and strong environmental resistance, it delivers next-generation HMI performance for factory automation and embedded applications.

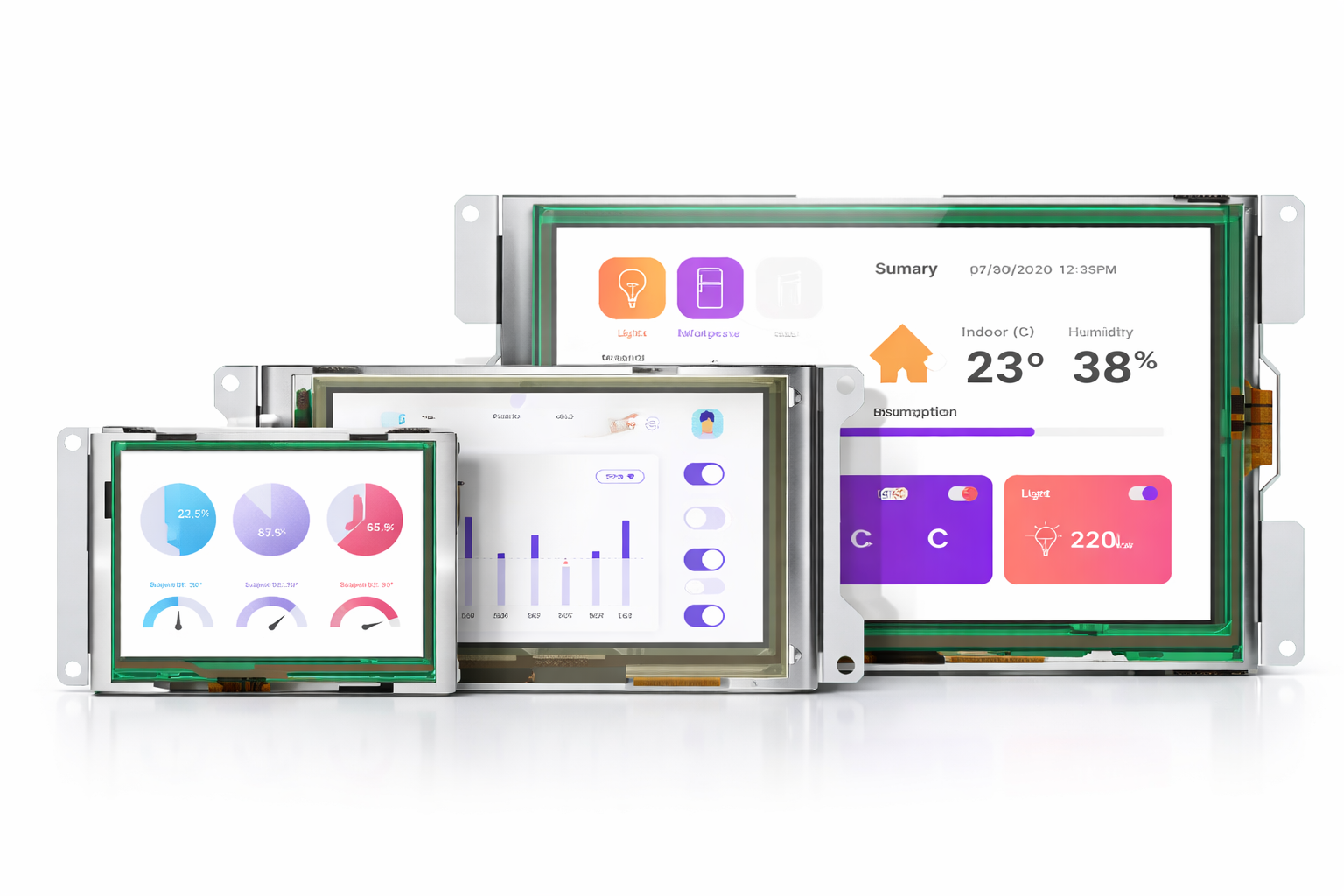

IS7 SERIES
The IS7 Series is a compact graphical panel display with an integrated resistive touchscreen and single serial interface. Designed to replace traditional 7-segment displays and mechanical switch panels, IS7 enables fast, intuitive touchscreen operation while maintaining long-term stable supply for industrial environments.
Ideal for compact equipment, small control units, and retrofit upgrades where space is limited.

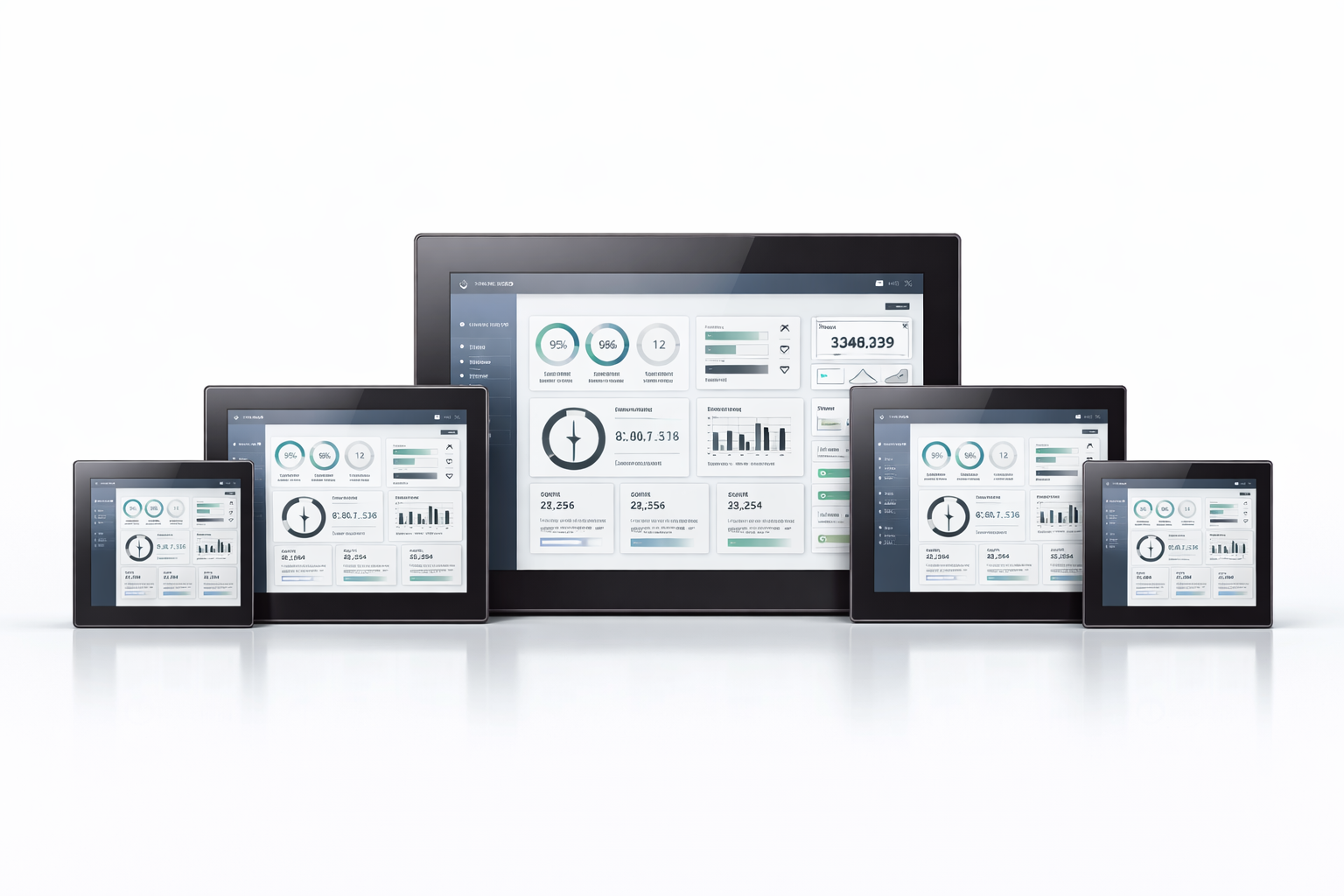

EM(G) 8 SERIES
The EM(G)8 Series is a compact industrial embedded PC designed for integration into small devices and IoT applications.
Built for reliability in demanding environments, the series features:
Embedded Linux (Yocto Project)
Fanless architecture
HDD-less design
Continuous operation capability
Write-protection function
High environmental resistance
Available Sizes:
4.3" • 5.7" • 7.0" • 10.1"
TMG SERIES
A full-flat projected capacitive touch monitor that enables multi-touch gesture operation simply by connecting to a PC.
Available in:
10.4"
12.1"
Designed for durability and long-term field use, the reinforced glass front panel improves impact resistance and weather protection. Supports multi-touch gestures such as drag, flick, and pinch, as well as stylus input. Suitable for industrial, commercial, and public environments.
TMH SERIES
Reliable flat-panel touch monitors designed for simple PC connectivity. Just connect to your PC and begin touchscreen operation. No mouse or keyboard required.
Available Sizes
• 10.4 inch
• 12.1 inch
Built with resistive touchscreen technology for stable, noise-resistant input. Operates reliably in environments with dust, water droplets, and electrical noise. Suitable for use with thick gloves or mittens.

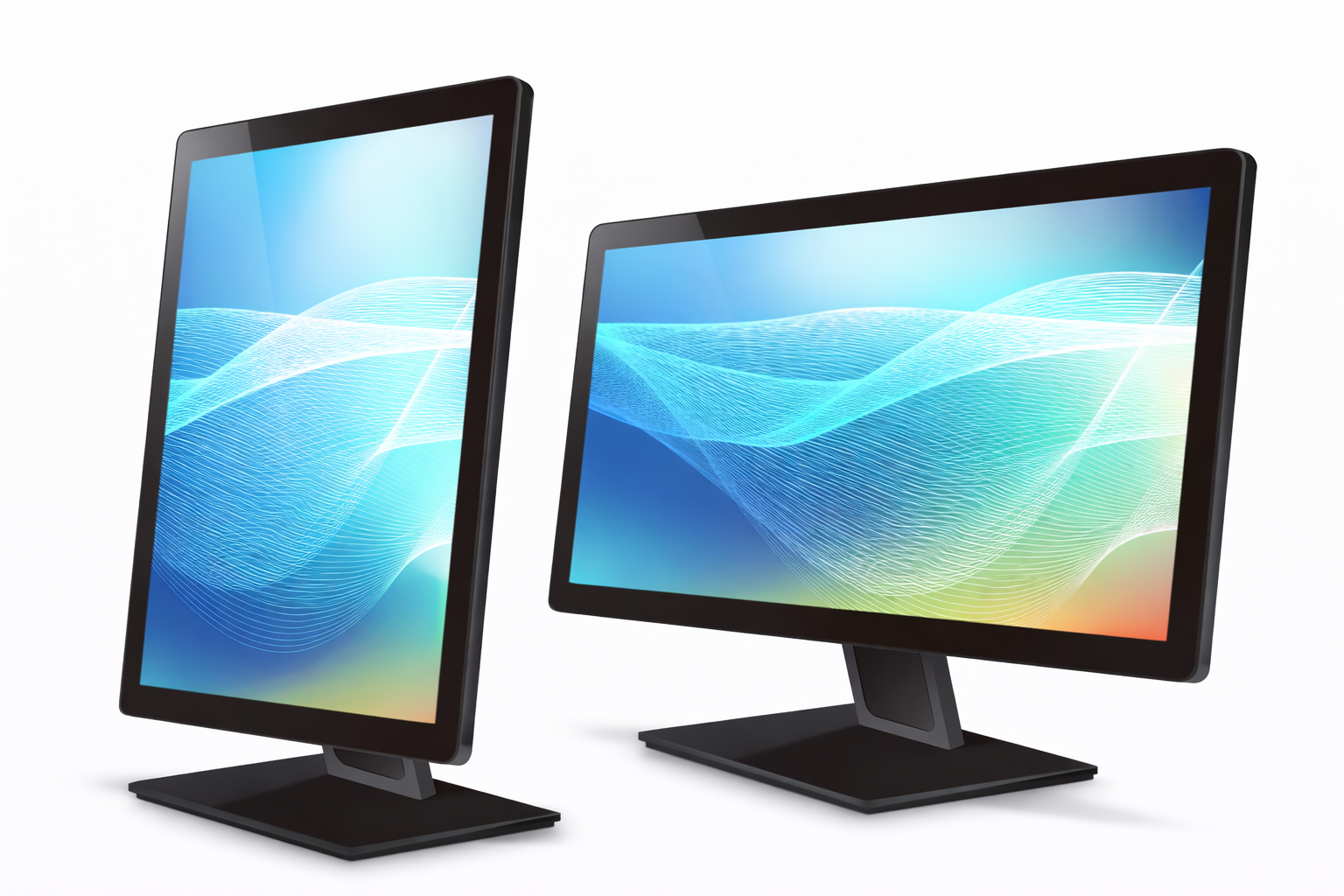

STYLISH, SMART TOUCH MONITOR
A thin, narrow-frame touchscreen monitor designed for both industrial and commercial environments.
Available in 15.6" and 21.5" Full HD models, the Stylish Smart Series combines clean aesthetics with selectable touch systems to match your application needs.

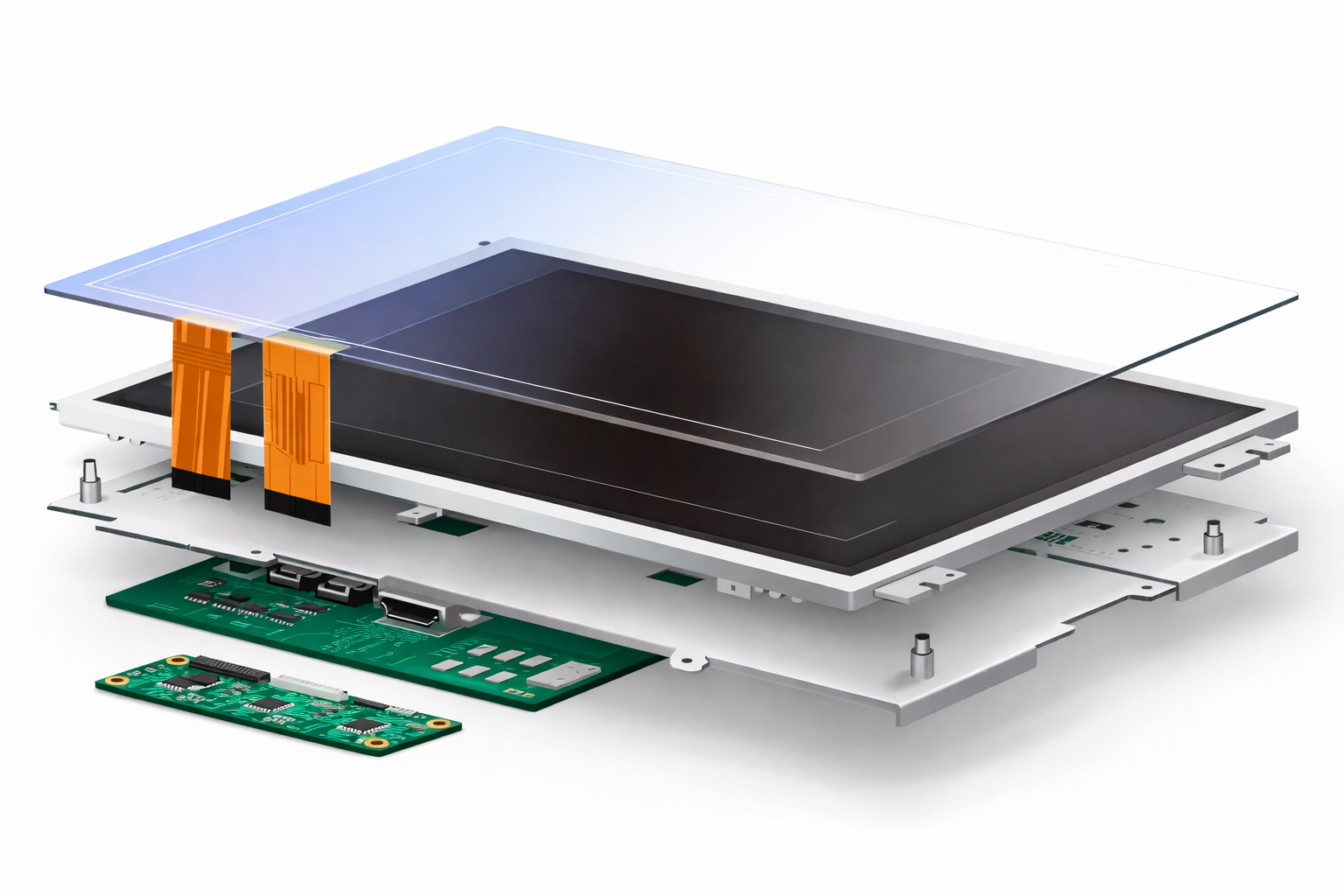

TK-B BASIC SERIES
The TK-B Series is a fully integrated touchscreen LCD display designed for immediate installation into finished products.
Each module includes a sheet metal chassis for structural mounting, along with HDMI input and touchscreen control — allowing direct integration into development and production systems without additional mechanical design.
TK-S SIMPLE PLUS SERIES
The TK-S Simple Plus Series is an all-in-one touchscreen LCD module designed for rapid integration into monitor and embedded product designs.
In addition to the touchscreen, controller, and LCD, Simple Plus includes an integrated HDMI image processing board — allowing immediate use as a complete touchscreen display right out of the box.
No external driver development required.

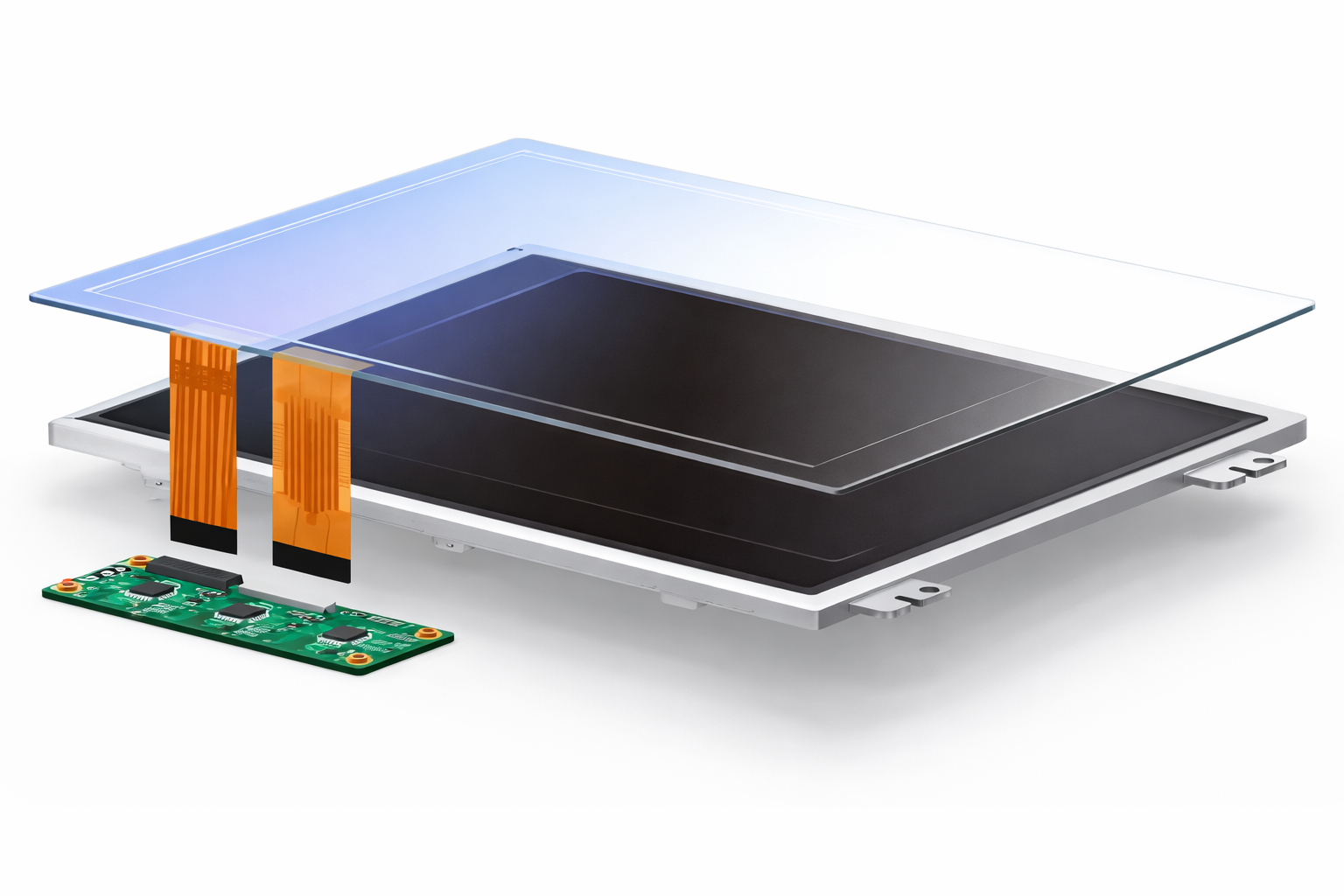

TK-S SERIES
The TK-S Series is a streamlined LCD touchscreen module set designed for product development and embedded applications where performance and clean industrial design are equally important.
Each module combines touchscreen sensor, LCD panel, and controller into a simple, integration-ready solution that supports rapid development without compromising aesthetics.

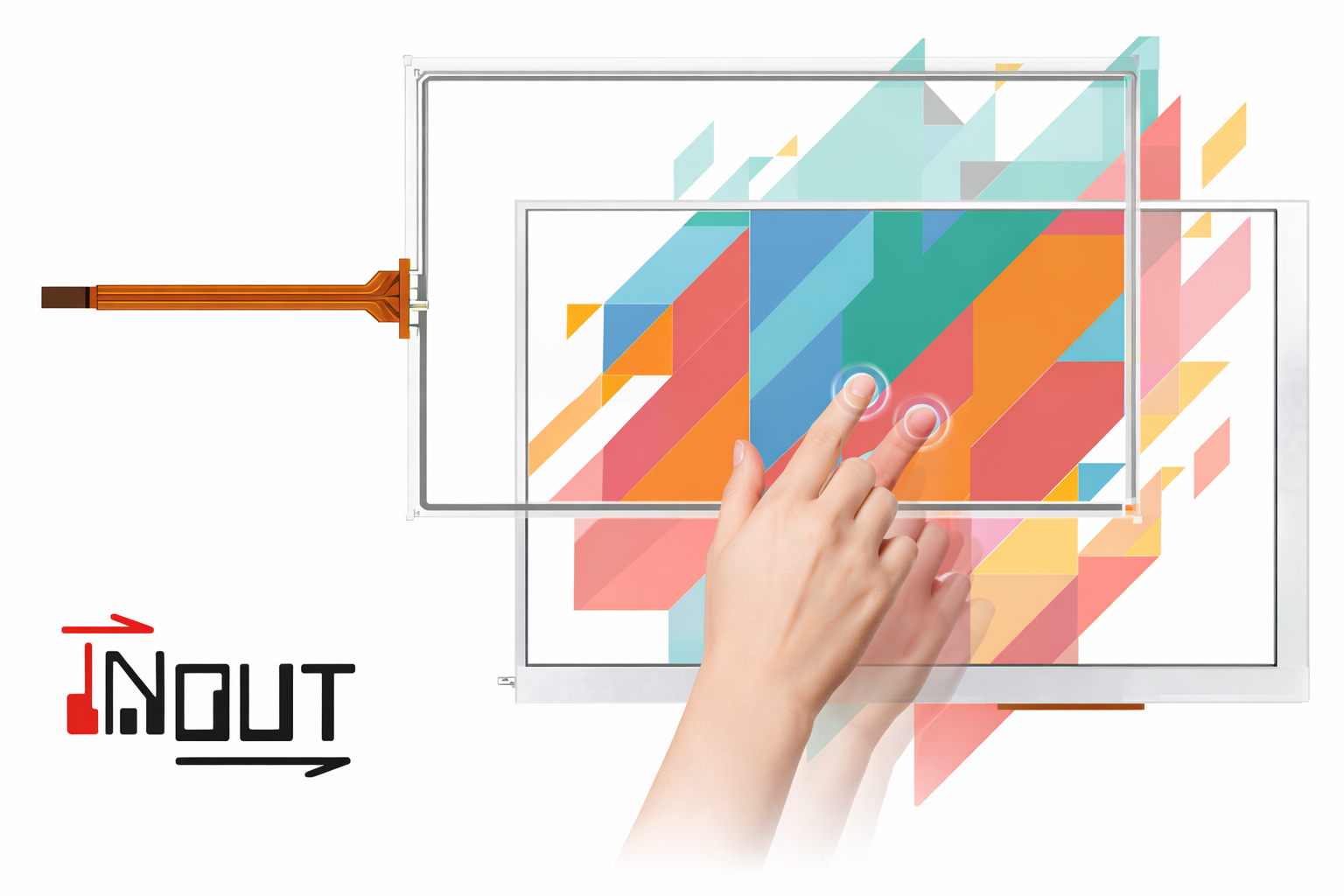

INOUT TOUCH LCD SERIES
The INOUT Series combines touchscreen control and LCD display into a single integrated module designed for industrial environments.
Built for process control, status display, production tracking, tool data visualization, and NG check applications, INOUT modules deliver stable performance across manufacturing and distribution sites.

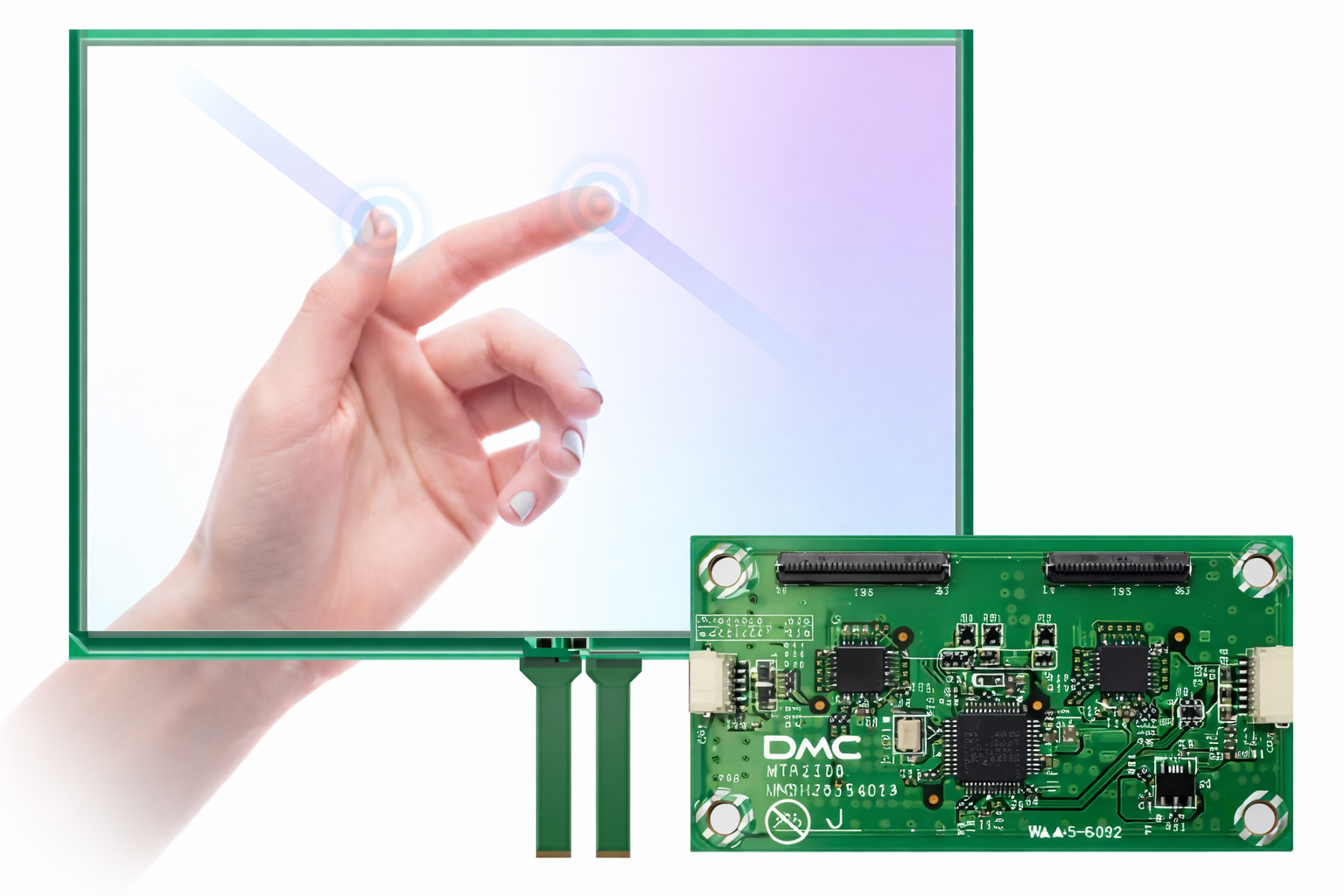

MTRx000 SERIES
The MTRx000 Series is a multi-touch resistive controller designed for the MTR-G Series, delivering gesture functionality with the durability and noise immunity of resistive technology.
Using a cell-type 4-wire resistive architecture, the panel sensor is divided into multiple detection cells, enabling multi-point touch recognition and gesture-based operation while maintaining stable performance in electrically noisy environments.

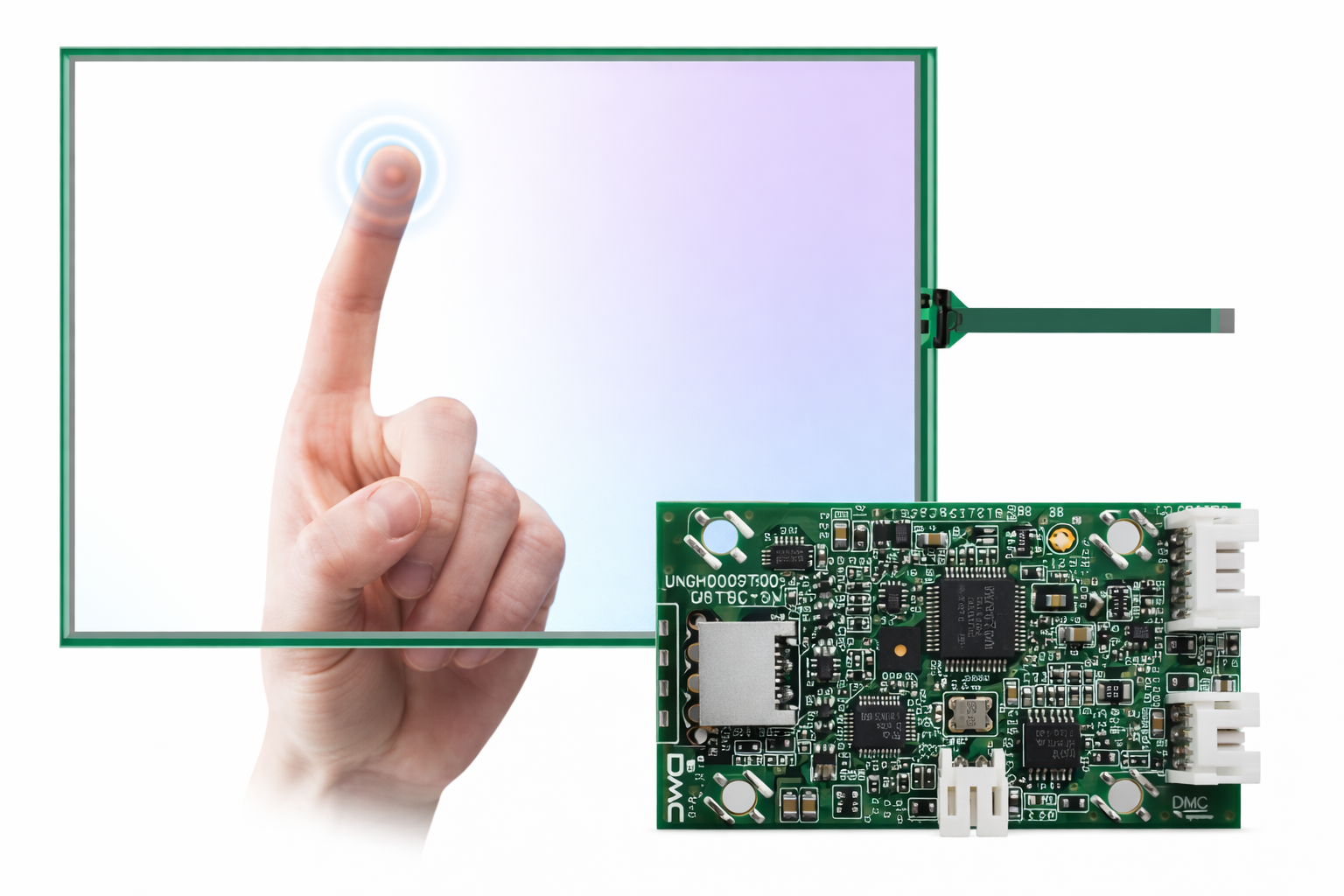

TSC-54 SERIES
The TSC-54 Series is a highly reliable 4-wire resistive touchscreen controller with long-term adoption across industrial applications.
Designed for stable and accurate single-touch detection, the TSC-54 integrates internal noise filtering and coordinate correction to ensure consistent performance in embedded and factory environments.
Supports USB 2.0 and asynchronous serial (RS-232C compatible) communication with host systems.

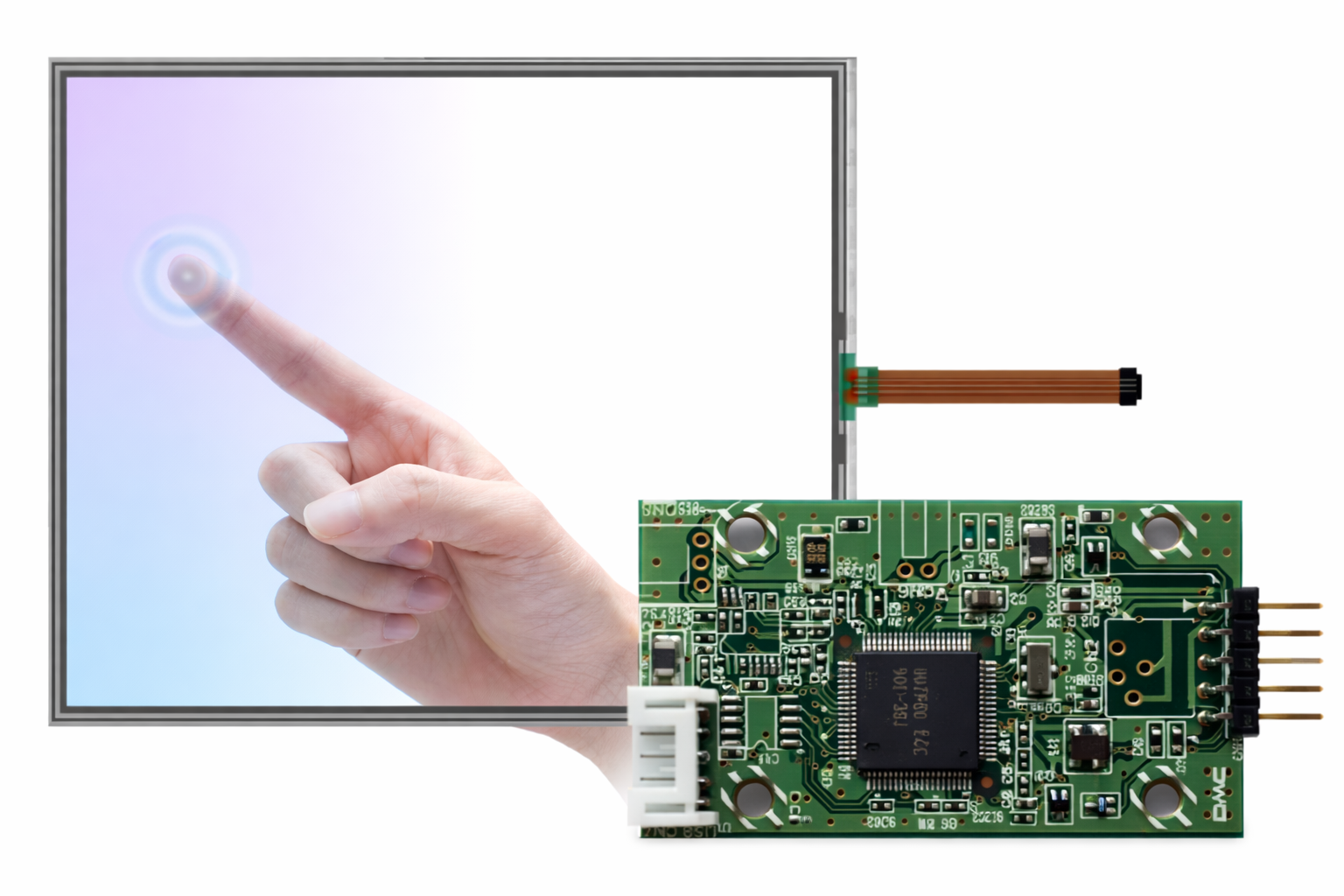

TSC-55 SERIES
The TSC-55 Series is a 5-wire resistive touchscreen controller engineered for applications requiring superior durability and long operational life compared to conventional 4-wire resistive designs.
Designed for stable, accurate coordinate detection, the TSC-55 integrates internal filtering and coordinate correction to ensure reliable single-touch performance in industrial and embedded environments.
Supports both USB and serial (RS-232C compatible asynchronous) communication with host systems.
