Rugged & Reliable with Rapid delivery.
A choose the right touch screen and LCD for your next application with assured rapid delivery.
Built to perform in the toughest environments, DMC's touch sensors support both resistive and capacitive technologies, with four product types tailored by size and application.

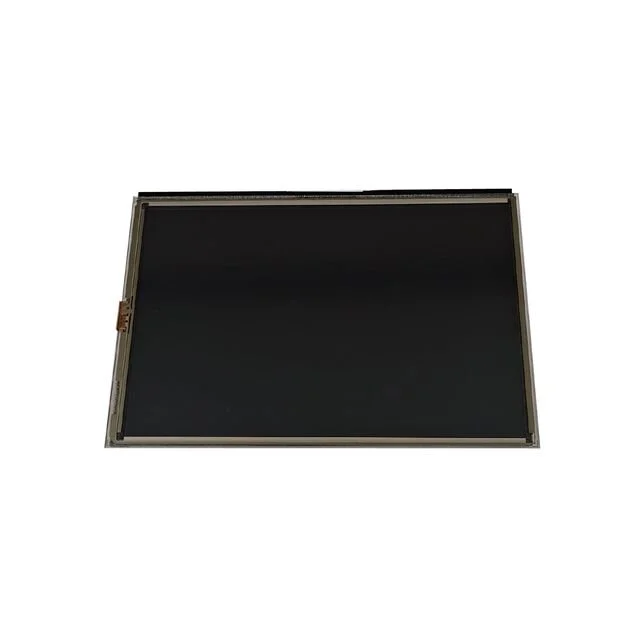

Part number : TK-SRA07BWS-101
Size : 7 inch wide
LCD Outline Dimension : 167.75mm (H) x 101.36mm (V) x 12.08mm (D)
LCD Active Area : 154.21mm (H) x 85.92mm(V)
Resolution : 1024 (H) x (R,G,B) x 600 (V)
Pixel Pitch : 0.1506mm(H) x 0.1432mm(V)
Pixel Arrangement : RGB Vertical Stripe
Display Mode : Normally Black
Display Colors : 16.7M
View direction : All
Brightness, White : 390cd/m2
LCD Interface : LVDS
Surface treatment : Anti-Glare
Weight : TBD±10% g
RoHS Compliance : YES
Touch screen : Analog 4-Wire Resistive(F/G)

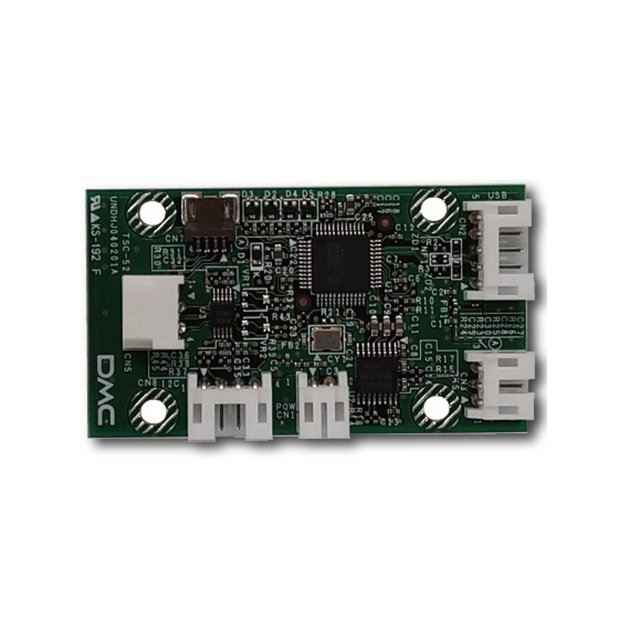

Touchscreen controller : Supported Controllers (Optional) TSC-54/RU-F, TSC-52/RU-F-S1
Operating Temperature : -20 ～ 70℃
