Rugged & Reliable with Rapid delivery.
A choose the right touch screen and LCD for your next application with assured rapid delivery.
Built to perform in the toughest environments, DMC's touch sensors support both resistive and capacitive technologies, with four product types tailored by size and application.

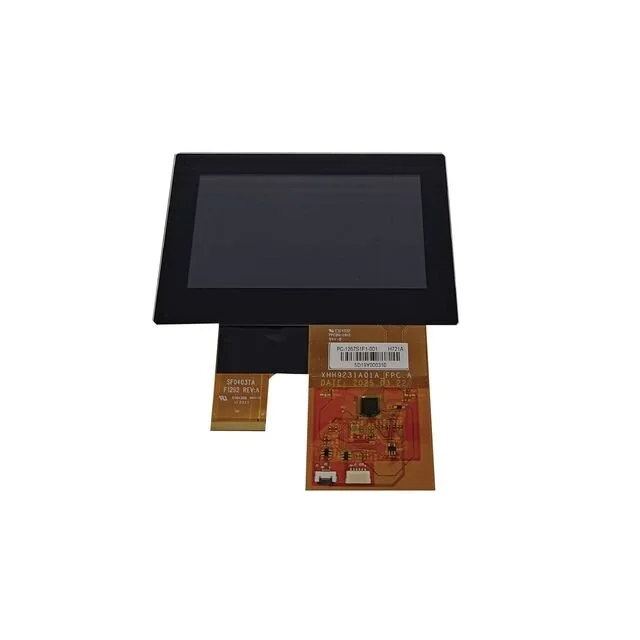

Part number : TK-SPA043WQ-101
Size : 4.3 inch
LCD Outline Dimension : 119.0mm(H) x 81.0mm (V) x 5.17mm(D)
LCD Active Area : 95.04mm (H) x 53.856mm (V)
Resolution : 480 (H) x (R,G,B) x 272 (V)
Pixel Pitch : 0.198mm (H) x 0.198mm (V)
Pixel Arrangement : R.G.B. Stripe
Display Mode : Normally Black
Display Colors : 16.7M
View direction : All
Brightness, White : 625cd/m2
LCD Interface : RGB (3.3V CMOS)
Surface treatment : Clear
Weight : 75±10% g
RoHS Compliance : YES
Touch screen : Projected capacitive (G/F/F)
Touch screen Interface : I2C (3.3V), USB *Only one interface can be used at a time
Operating Temperature : -20 ～ 70℃
